Long-Travel Motion in Two Directions for Precise Positioning
Achieve consistent, accurate movement at the extremes of your XY stage
| | | | | |

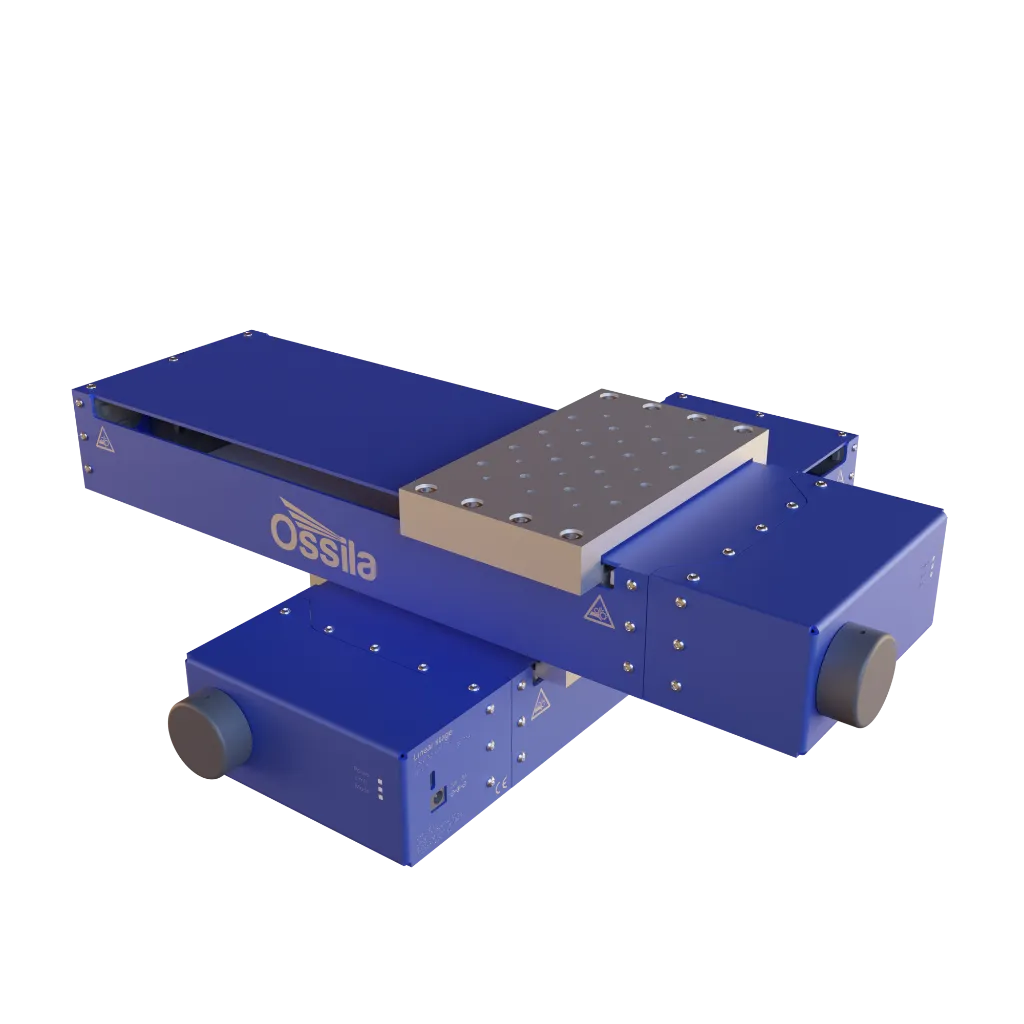

Including two 200mm stage, our modular XY stage kit helps you save money and implement precision. At a discounted price, this system gives you the ability to switch between single and dual-axis tasks as needed. The user-friendly design lets you combine the stages or use them individually.
Boasting a 200mm travel distance and a precision C7 ball screw, this system offers accurate positioning control along one or two axes. Achieve precise motion with a simple operating system to streamline your workflow. Each stage undergoes calibration in compliance with the ISO 230-2:2014 standard, verified by our traceable calibration system.
Plus, our free motion control software detects and controls each long-travel stage. It enables straightforward stage homing, movement to specific absolute positions, adjustment of relative distances, and speed customization. For added versatility, you have the option to directly manage your stages through a serial command library.
Achieve Precision
Precise and accurate motion control
Extended Travel
Motion control across a range of 200mm
Move High Loads
Move 30kg horizontal and 10kg vertical loads
2D Motion
Long-travel positioning in two directions
Simple Integration
Designed for every laboratory setup
Complete System
Includes a motor, control, and stage in each unit
Free Software
Intuitive and flexible software at no extra cost
Two-Year Warranty
Covered by the Ossila Warranty
Specifications
| Drive | C7 precision ball screw with dual linear rails |
|---|---|
| Travel | 200 mm |
| Maximum speed | 15 mm/s |
| Maximum horizontal load | 30 kg |
| Maximum vertical load | 10 kg |
| Dimensions (L x W x H) | 47 cm x 17 cm x 7 cm |
| Weight | 7 kg |
* For a single linear stage
Motion Specification*
| Maximum Reversal Error | <40 μm |
|---|---|
| Mean Reversal Error | <20 μm |
| Bi-directional Repeatability | <40 μm |
| Forward Repeatability | <10 μm |
| Backward Repeatability | <10 μm |
| Mean Bi-directional Positioning Error | <20 μm |
| Bi-directional Positioning Error | <40 μm |
| Forward Positioning Error | <30 μm |
| Backward Positioning Error | <30 μm |
| Bi-directional Systematic Positioning Error | <40 μm |
| Forward Systematic Positioning Error | <30 μm |
| Backward Systematic Positioning Error | <30 μm |
*Subject to change
XY Stage Gallery
Software
The Ossila Motion Control Console works to seamlessly control your linear stages. The software automatically detects which stages are connected and populates the workspace accordingly.
- The Ossila Motion Control Console is completely free. Install the software on as many PCs as you want and download future updates for free.
- The software is designed to be simple and easy-to-use, with no hidden menus or settings.
- Connect via USB and get started straight away, even without any programming knowledge.
Software Requirements
| Operating System | Windows 10 or 11 (64-bit) |
|---|---|
| CPU | Dual Core 2 GHz |
| RAM | 4 GB |
| Available Hard Drive Space | 142 MB |
| Monitor Resolution | 1440 x 960 |
| Connectivity | USB |
In the Box
- 2x 200mm Linear Stages
- Power supply
- USB cable
- Test report
